With the development of society, Shandong cable tray is widely used in various fields. Cable tray plays a supporting role in the process of wire and cable installation. It can not only regulate the installation of wire and cable, but also has a certain protective effect on them. Therefore, Shandong cable tray needs to have a certain bearing capacity. If there is no good bearing capacity, it will have a certain impact on the construction. Next, Xiaobian will take you to understand what factors will affect the bearing capacity of Shandong bridge cable.

山東電纜橋架

Shandong cable bridge

電纜橋框架由薄鋼板沖壓而成，承載能力有限。它會因橋梁超載而變形，這不僅會影響橋梁的美觀，還會影響電纜的運行。正常情況下，電纜橋框架的承載能力由電纜橋框架的荷載特性曲線表示。從荷載曲線可以看出，承載能力與橋梁的規格和支撐距離有關，對應于相同的支撐距離和彎曲、凸起變形。側面高度大，承載力大。當承載能力相同時，相同規格、小支撐距離的電纜橋框架彎曲變形較小。

The cable bridge frame is made of sheet steel, which has limited bearing capacity. It will be deformed due to bridge overload, which will not only affect the beauty of the bridge, but also affect the safe operation of the cable. Under normal conditions, the bearing capacity of the cable bridge frame is represented by the load characteristic curve of the cable bridge frame. It can be seen from the load curve that the bearing capacity is related to the specification and support distance of the bridge, corresponding to the same support distance, bending and bulge deformation. The side height is large and the bearing capacity is large. When the bearing capacity is the same, the bending deformation of cable bridge frame with the same specification and small support distance is smaller.

1.動荷載是指橋架安裝和維護過程中，施工維修人員的重量。對于輕型電纜橋框架，一般不考慮動荷載，即不允許人們站在橋梁框架上。如果需要考慮站人，跨度應該適當減小。

1. Dynamic load refers to the weight of construction and maintenance personnel during bridge installation and maintenance. For the light cable bridge frame, the dynamic load is not considered, that is, people are not allowed to stand on the bridge frame. If people need to be considered, the span should be reduced appropriately.

2.靜荷載是指敷設在山東電纜橋架內的電纜種類、根數、每根的外徑重量/單位長度，按電纜敷設的不同路由分別列表統計。

2. Static load refers to the type, number of cables laid in Shandong cable tray, and the weight / unit length of each cable outside diameter, which are listed and counted according to different routes of cable laying.

3.附加載荷是指僅在室外由冰、雪、風和電磁力形成的載荷。它與安裝現場的自然氣象條件和帶電體的性質有關。設計應根據各種條件進行計算。

3. Additional load refers to the load formed by ice, snow, wind and electromagnetic force only outdoors. It is related to the natural weather conditions of the installation site and the nature of the charged body. The design shall be calculated according to various conditions.

橋梁可以獨立架設，當然，除此之外，它們還可以鋪設在各種建筑物和管架支架上。它們有許多特點和優點，因?yàn)檫@不僅能體現出結構簡單、外形美觀，而且還能表現出配置靈活、維護方便等特點。

Bridges can be erected on their own, and, of course, they can be laid on various buildings and pipe supports. They have many characteristics and advantages, because they can not only reflect the simple structure, beautiful appearance, but also show the characteristics of flexible configuration and convenient maintenance.

山東電纜橋架

Shandong cable bridge

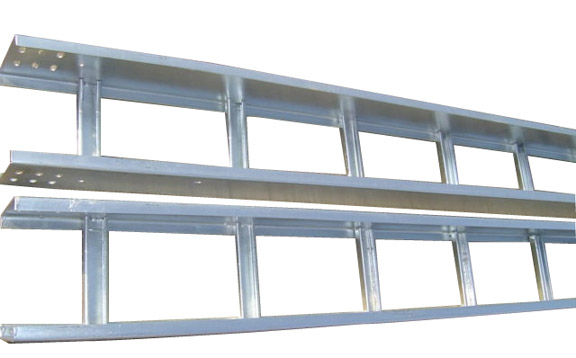

以上介紹的就是一些影響山東電纜橋架承載力的因素，希望以上內容對大家有所幫助。目前電纜橋框架通常分為槽式、托盤式、梯式、網式和其他結構類型。此外，無論哪種類型的電纜橋框架是由一些部分組成，這些部分是由支架，支撐臂，安裝配件和其他部分組成。

The above is a number of factors that affect the bearing capacity of cable tray in Shandong Province. I hope the above contents can help you. At present, cable bridge frame is usually divided into slot type, tray type, ladder type, net type and other structural types. In addition, no matter what type of cable bridge frame is made up of some parts, these parts are composed of bracket, support arm, installation accessories and other parts.
